X-TREME LIGHT

700mm (28″) / 1000mm (39″) Wide Tape Application Machine

“The World’s Most Versatile Tape Machine”

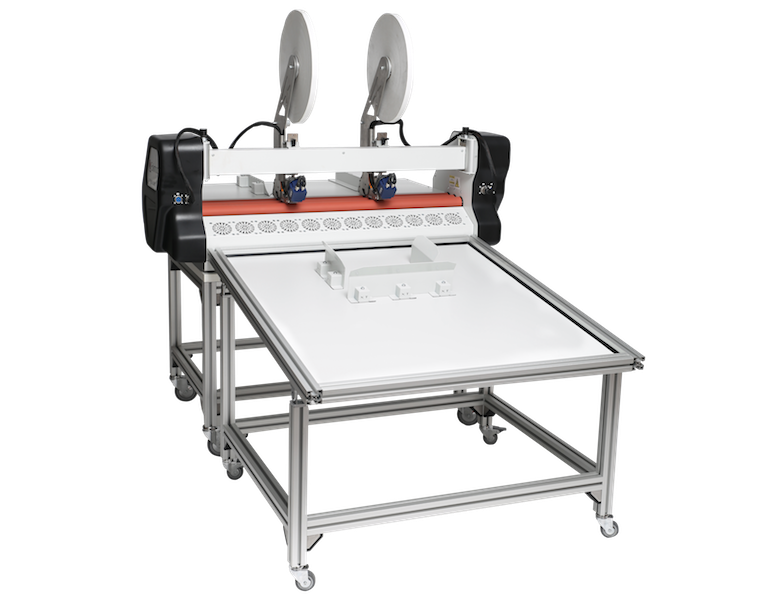

The X-Treme Light is available as a 700mm (28″) or 1000mm (39″) wide tape application machine. This model can be fitted with from 1 up to 4 tape applicator heads, allowing multiple strips of tape to be applied to your materials in one pass. With rapid setup times of less than 5 minutes and application speeds up to 35m/min, the machine is a fast and versatile solution for applying double sided tapes to all types of print, POS/POP displays, packaging and plastic materials. The X-Treme Light is powered by a single phase plug for simple installation, no compressed air required.

  • 700mm (28″) or 1000mm (39″) width

  • Compact design

  • European manufactured

  • 1 up to 4 tape applicator heads

  • Under 5 minutes setup times

  • Tape materials up to 10mm (3/8″) thick

tape application machine

Video Presentation

One machine. Thousands of different applications.

The X-Treme Light is widely used in the graphic arts industry, however due to the versatility of the machine it’s not just limited to these markets. Whether you need to apply double sided tapes to individually die cut pieces or sheet blanks, tapes can be applied with speed and accuracy. Commonly taped items include die cut boxes, presentation folders, envelopes, door signs, table talkers, wobbler sheets, POS/POP display components and much more! With you being able to tape onto materials up to 10mm thick, the possibilities with the X-Treme Light are endless.

  • Print Finishing: Presentation folders, table talkers, die cut boxes, envelopes, posters, photo frames, belly bands, wobblers and more.

  • Plastics: Acrylic, perspex, PVC, foamex etc
  • Metals: Aluminium, stainless steel, dibond® etc

Rapid setup times, no specialist operator required.

Adjustable magnetic feed guides to accommodate different widths of materials.

Easy to use touch screen interface for entering tape measurements.

Powerfull tape applicator heads for applying even the toughest tapes.

Specification…

Machine Speed 10 - 35m/min
Number of Taping Heads 1,2,3 or 4
Touch Screen Language English, Polish, Italian, French, German, Spanish
Electrical Needs 110-220v
Number of Individual Tape Spots Up to 4
Minimum Tape Spot Length 25mm
Minimum Distance Between Spots of Tape 25mm
Minimum Horizontal Distance Between Tape Strips 46mm (centre to centre)
Tape Thickness Up to 1mm
Minimum / Maximum Tape Width 6mm - 25mm / 6mm - 50mm
Maximum External Tape Roll Diameter 400mm
Internal Tape Roll Diameter 76mm
Maximum Product Width 700mm or 1000mm (depending on model)
Maximum Product Thickness 10mm
Minimum Product Thickness 80gsm
Warranty Period 12 months
Price Please contact us for pricing
