FUZE™ Industry

1850mm (73″) Wide Tape and Mag Application Machine

Industrial Grade Components to Take Your Tape and Mag Application to the Next Level

FUZE™ Industry is an 1850mm (73″) wide tape and mag application machine and can be fitted with up to 6 TAPEZ:EZ™ and/or MAG:EZ™ applicator heads. This versatile and simple to use tape machine is capable of applying many double sided tapes and magnetic tapes. It is possible to process materials up to 40mm (1.6″) thick for maximum versatility. With a simple to use touchscreen interface, a non-skilled operator can setup the machine in just a few minutes. All FUZE™ tape machines are powered by a single phase plug and no compressed air is required. As a result, no specialist installation or training is needed.

  • Robust wide format design

  • 1850mm (73″) machine width
  • European manufactured

  • 2, 4 or 6 TAPE:EZ™ taping heads

  • 2, 4 or 6 MAG:EZ™ mag taping heads

  • Worldwide shipping

FUZE Industry 1850

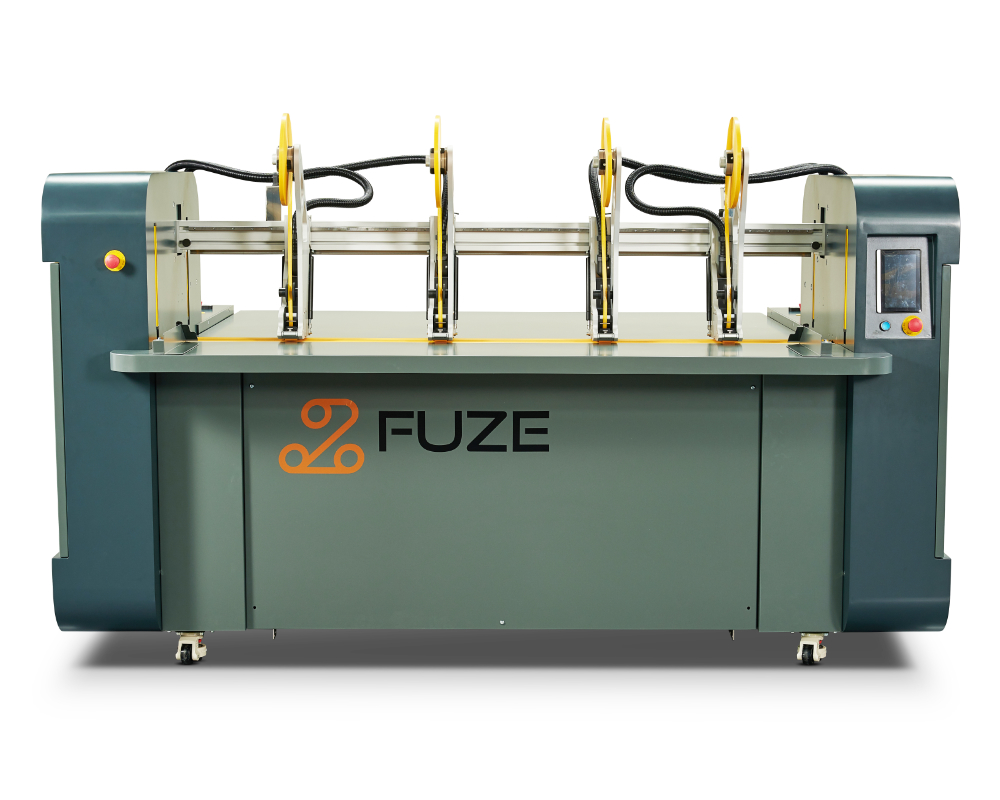

FUZE Industry 2

Tape and Mag Application Made ‘EZ’ for All Types of Applications

FUZE™ Industry is a reliable solution for firms who operate in the graphic arts, plastic fabrication or packaging sectors. For maximum versatility, materials can be fed as individually die cut pieces or sheet blanks. Popular applications include:

Print Finishing

Print Finishing

Packaging

Packaging

POS/POP Display

POS/POP Display

Plastics

Plastics

Metals

Metals

Niche Applications

Niche Applications

Watch the FUZE™ Industry in Action!

FUZE™ Industry is suitable for all types of different applications, watch the below video to see some examples. Sample testing and demonstrations are available for all FUZE™ machine models, contact us to arrange.

*** VIDEO COMING SOON ***

Technical Overview
Max. Sheet Width 1850mm (73″)
No. of Taping Heads 2, 4  or 6 TAPE:EZ™ or MAG:EZ™ Head Heads
Machine Speed Up to 60m/min
Tape Widths 6mm up to 30mm
No. of Tape Strips in One Pass Up to 8
Material Thickness 80gsm up to 40mm
Power 220V / 110V
Setup Times Under 5 minutes

*Full specification available on request.
